Simucube1 Mige 20Nm DD OSW for parts AUD450 NSW AUSTRALIA
The Simucube board has failed, it does not power up, there is 48V from the power supply and I removed both the wireless module and Ioni HC PRO board makes no difference. Wireless, motor, encoder, HC Ioni all assumed working fine (wheel was in use up until last week).
Includes components mounted in small PC case:

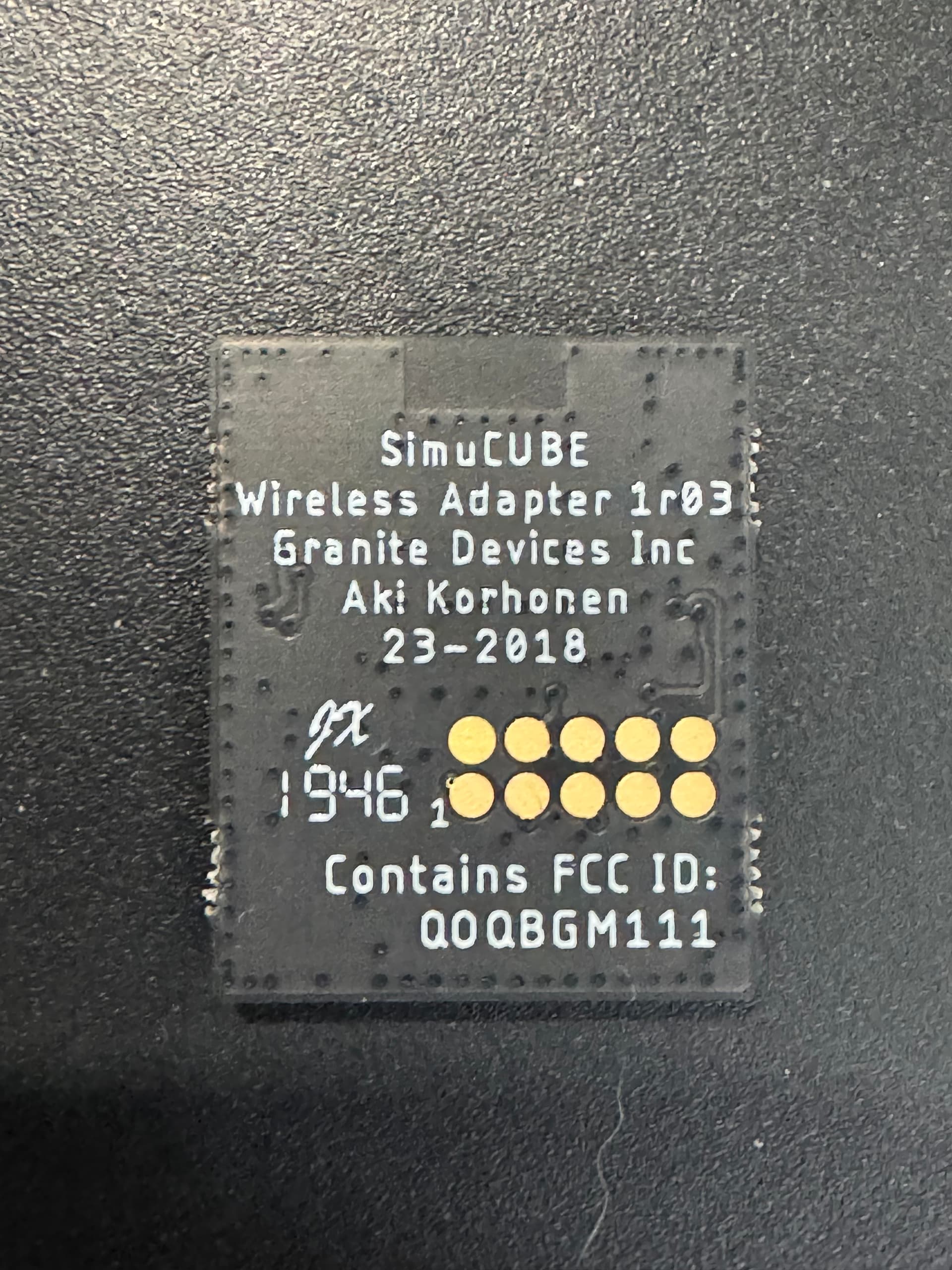

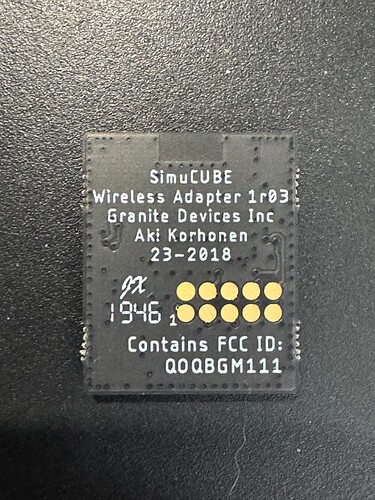

- Simucube1 wireless adapter was using with CubeControls

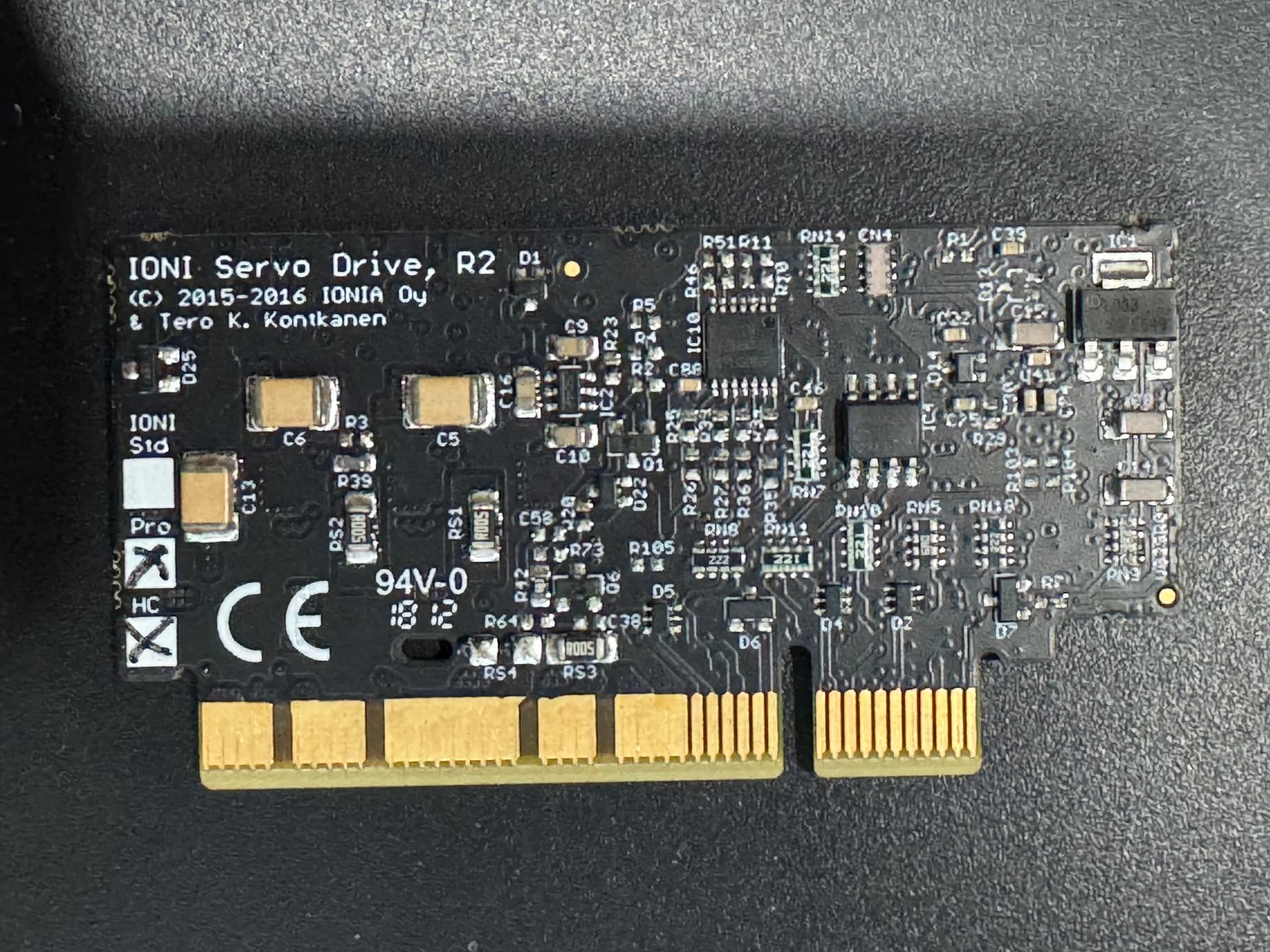

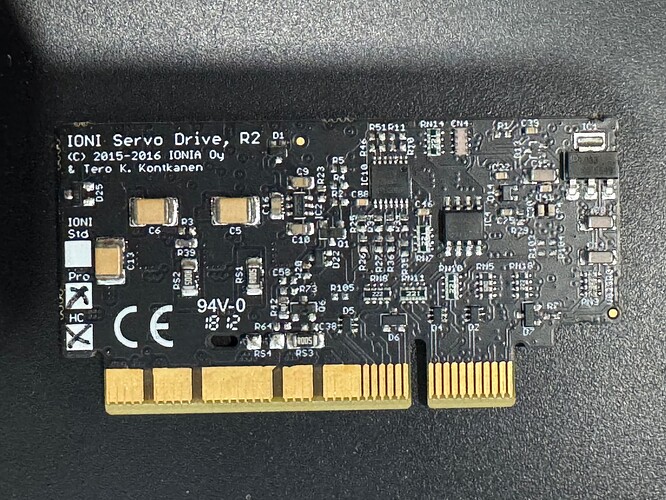

- Granite Devices IONO PRO HC motor controller
- MIGE AC Servo Motor 130ST-M10010 1KW 10Nm (20Nm peak) 1000RPM 220V Electric Servo Motor with power cable for SC1.
- Biss C 22-bit 4.2M PPR with encoder 3M cable pre-soldered on DB15 connector (purchased Aug 2023 from Mige $180, installed with 3D printed adapter plate)

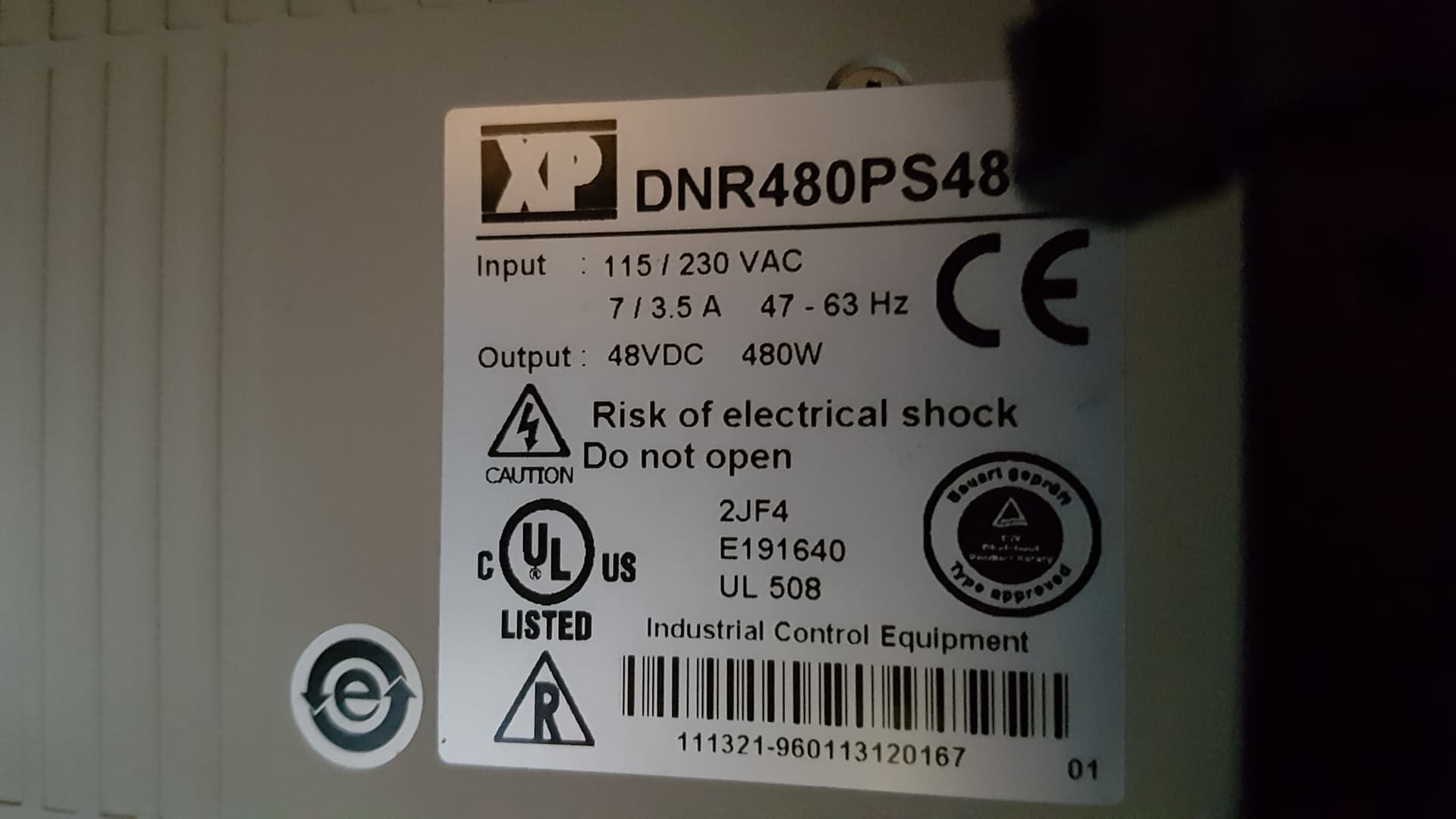

- 48V 480W power supply model XP DNR480PS48 working with green light and measured 48V on the inputs to the SC1 board.
- Emergency stop button wired in. Front mount bracket not included.
