MCC and MMC help

Simucube 1 Simucube 1 Questions
1

Good evening,

Today, I accessed the Ioni drive configurations for the first time and wanted to ask for your advice. My setup consists of a MIGE 130ST-AM15015 motor, a BISS-C encoder, a MeanWell SDR-480-48 (48V 10A) power supply, and an IONI Pro HC drive.

Do you think it’s correct to have the [MCC] Continuous current limit set to 13.250 A? Shouldn’t I set it to 24.50 A, like the MMC?

I’ve attached some screenshots.

Thank you.

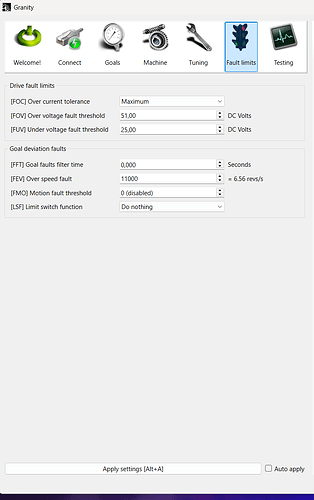

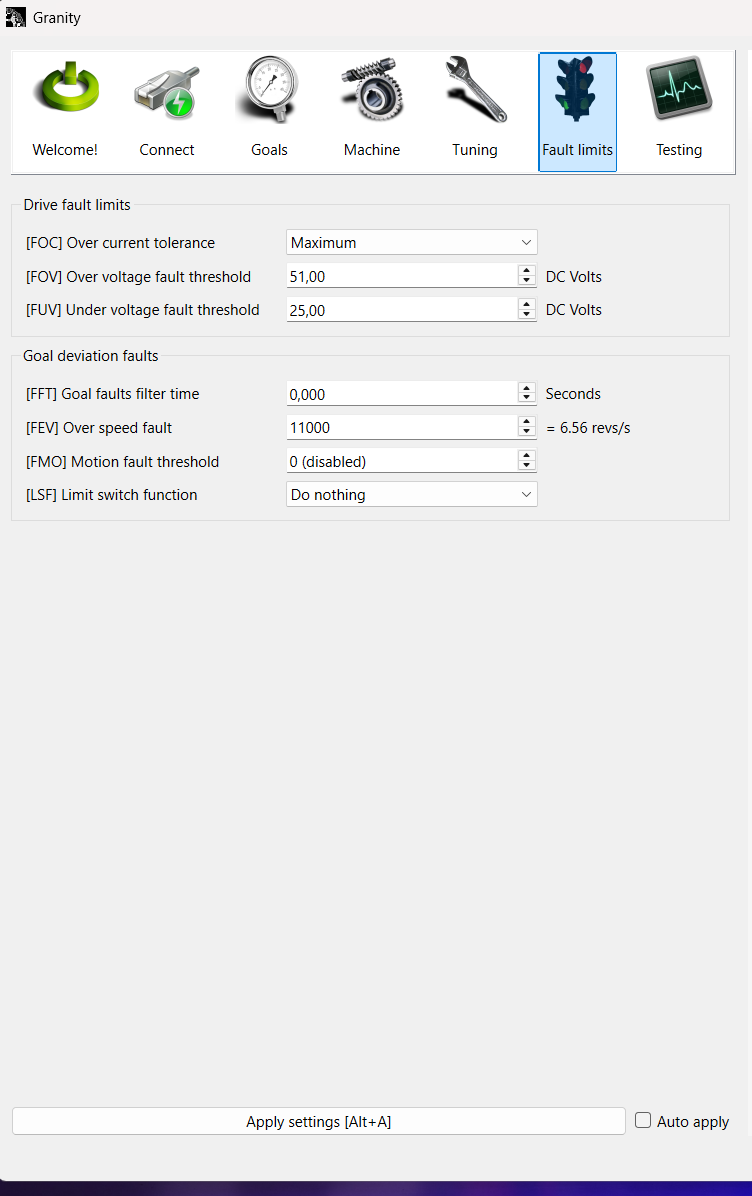

fault limits
fault limits752×1196 65.3 KB

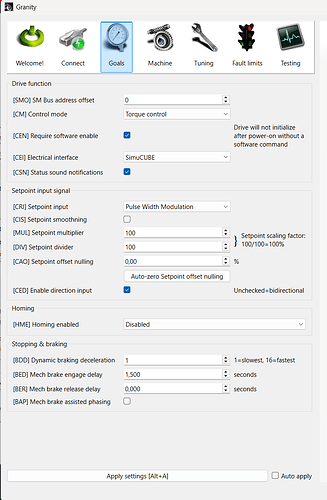

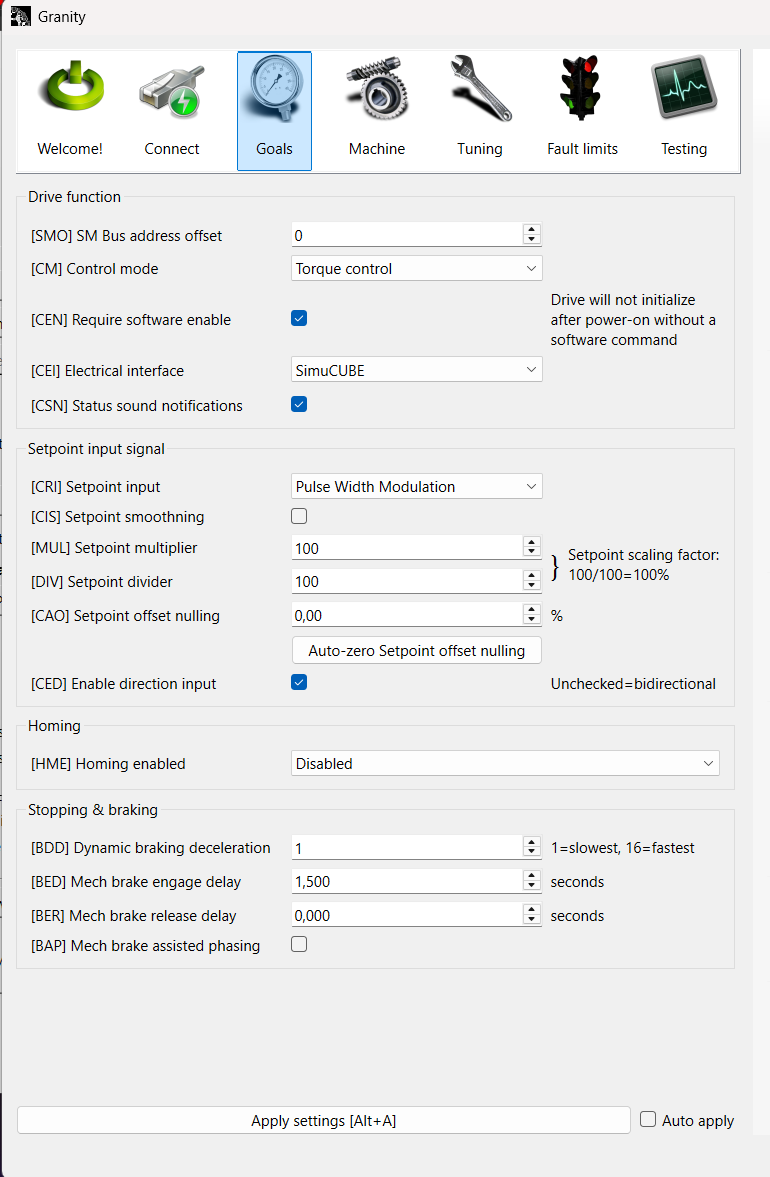

goals
goals770×1177 73.8 KB

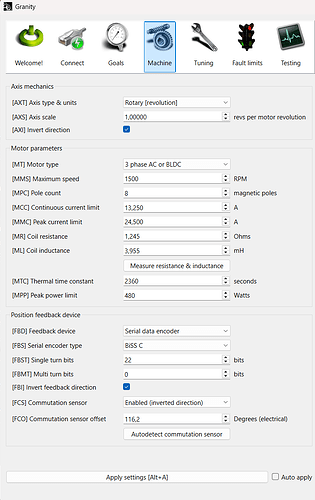

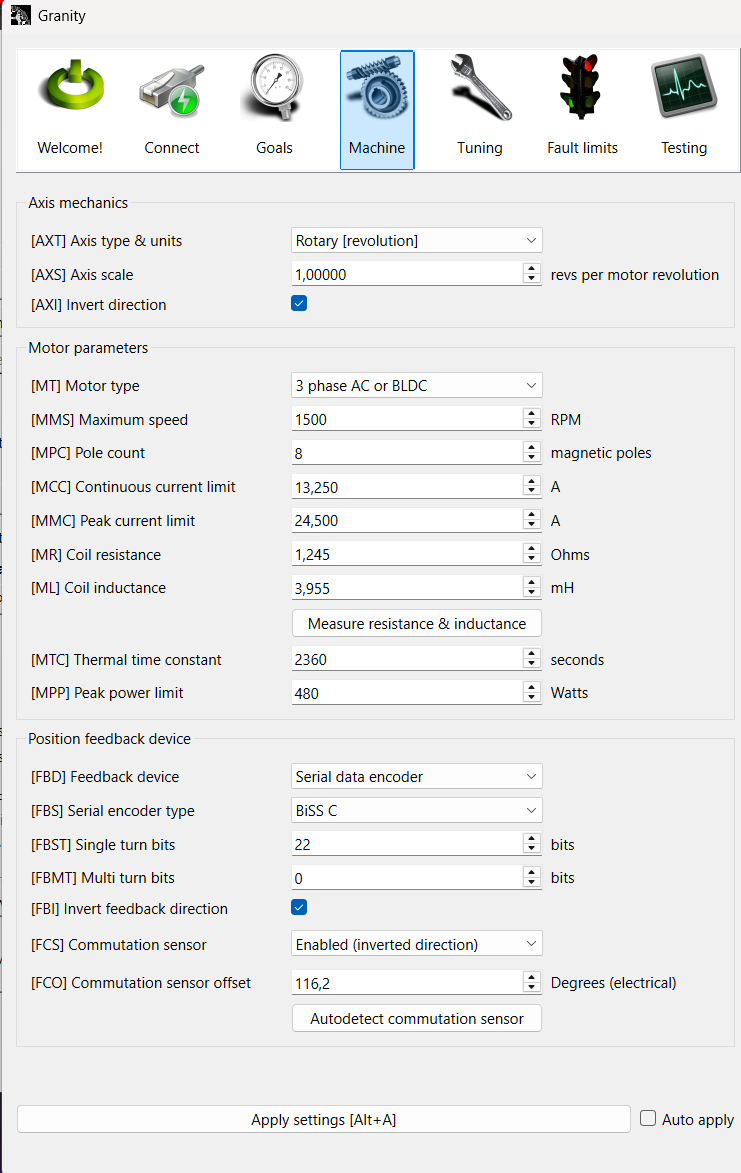

machine
machine741×1173 75.5 KB

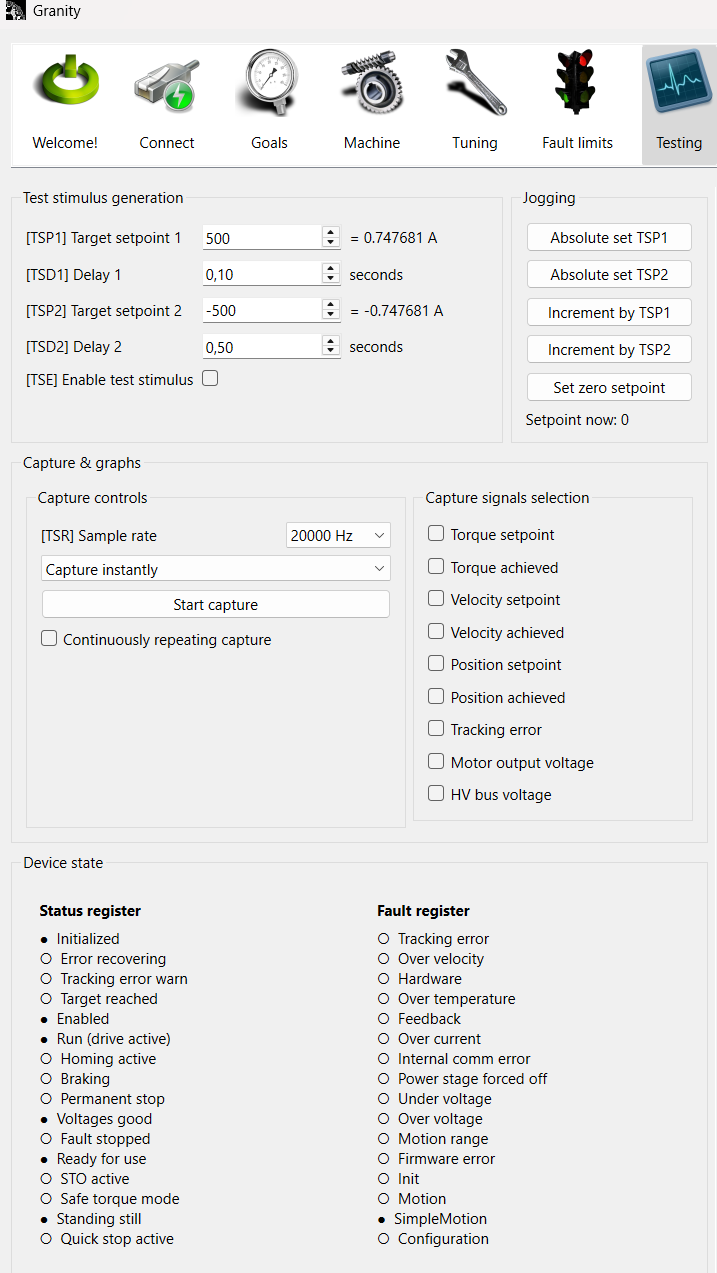

testing 1
testing 1717×1273 77.5 KB

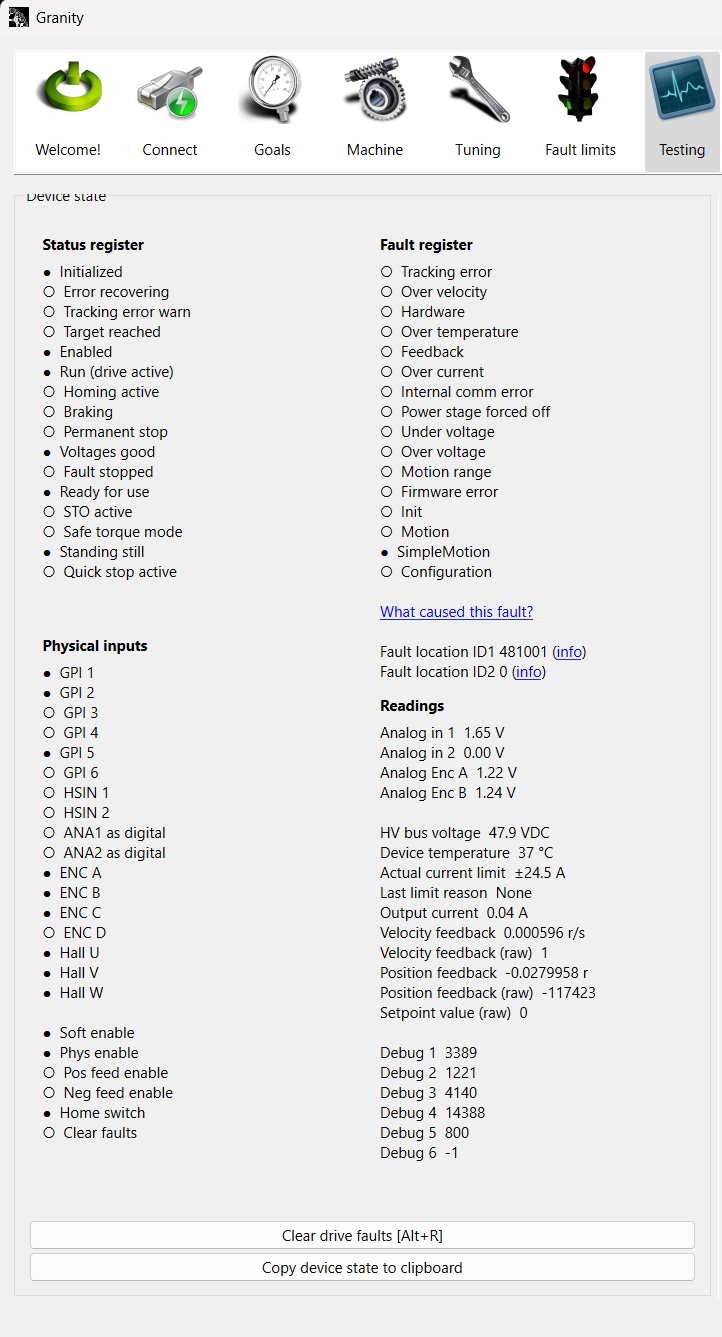

testing 2
testing 2722×1337 75.6 KB

2

There should always be a good gap on the MMC and MCC values. Your values look perfectly normal and as expected.

3

Great.
Thanks for your reply
